BỘ KHUẾCH ĐẠI CÔNG SUẤT NAC-3240

BỘ KHUẾCH ĐẠI CÔNG SUẤT NAC-3240

Functions:

1.1U switch appearance design.

Simple and user-friendly engineering design, the front panel displays status signals, and the switch and volume knob are rear-mounted to reduce unprofessional operations and maintenance failures.
Built-in high-efficiency digital power amplifier, constant voltage 100V output, efficiency as high as over 90%.
With front signal input function (1 channel microphone input, 2 channels auxiliary line input, 1 channel network audio), each audio channel has independent volume adjustment. At the same time, the line input supports balanced input, which effectively reduces the access noise during system connection and improves the signal-to-noise ratio of the system.
It has 1 alarm input and 1 alarm output to link peripheral equipment.
Internationally accepted wide-voltage power supply design, with strong power supply voltage adaptability.
Built-in complete protection circuit, supports multiple protection functions such as overload and overheating protection, and supports power supply and line lightning protection and surge protection.

Parameters:

Power supply AC100V～240V 50Hz～60Hz (supports common mode 4K, differential mode 2K lightning surge protection)

Power consumption <300W

Network communication protocols TCP/IP, UDP, ARP, ICMP, IGMP protocols

Network chip rate 10/100Mbps

Audio encoding MP3/PCM/ADPCM/G711.a/G711.u/G729

Audio sampling, bit rate: 8kHz～44.1kHz, 16bit, 8kbps～320kbps

Signal-to-noise ratio (S/N) ≥84BA weighted)

Frequency response 80Hz-18KHz

Input sensitivity AUX1: 500mV (balanced), AUX2: 500m7 (unbalanced), MIC: 100mV (unbalanced)

Output power 240W (constant voltage 100V)

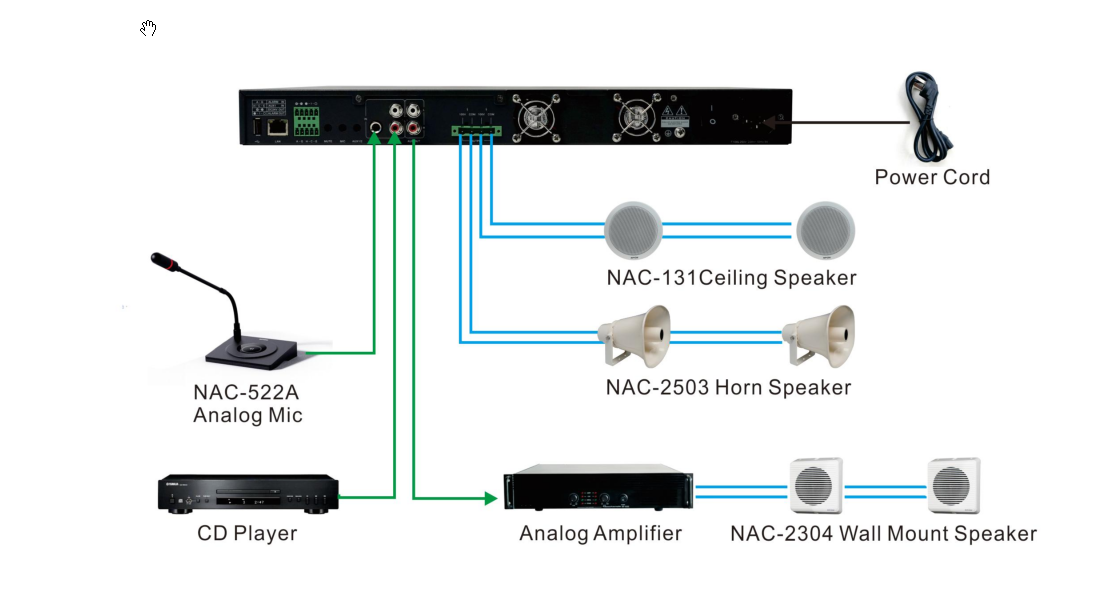

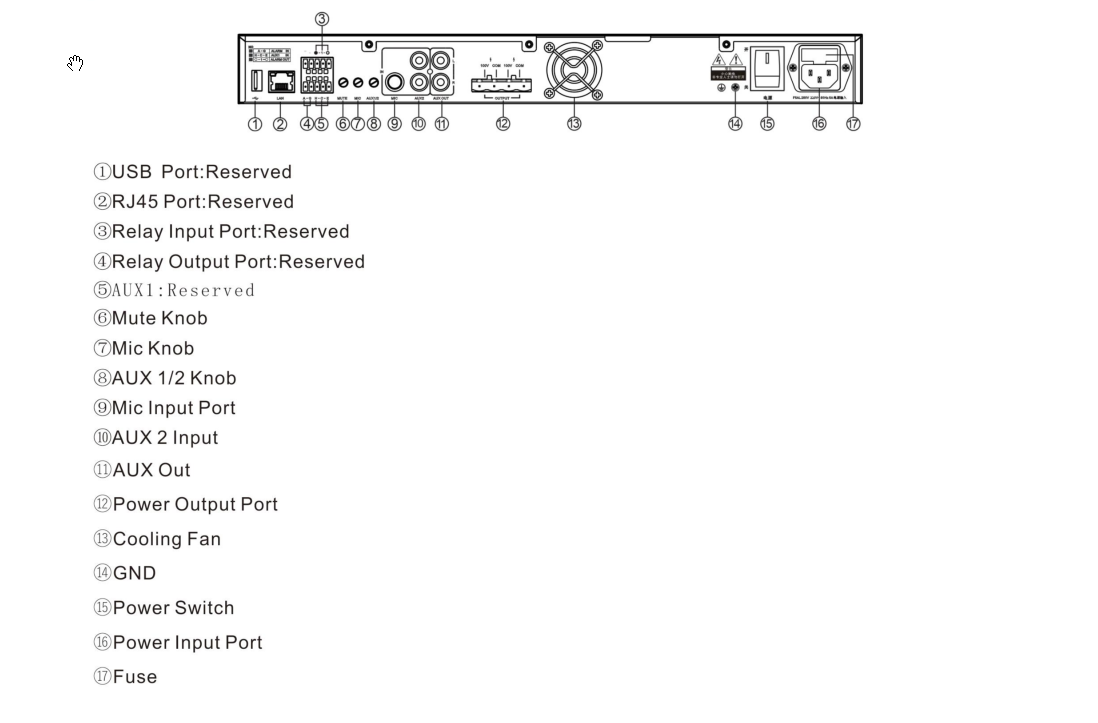

Interface: 1 microphone input, 2 line inputs, 1 line output, 1 alarm input, 1 alarm output
